COBB FIBRE OTTICHE

“SIDE GLOW” SIDE EMISSION SYNTHETIC FIBRE OPTIC CABLES

The optical fibers “Side-Glow” are used essentially for scenographic and / or decorative effects, due their particular characteristic of side light emission.

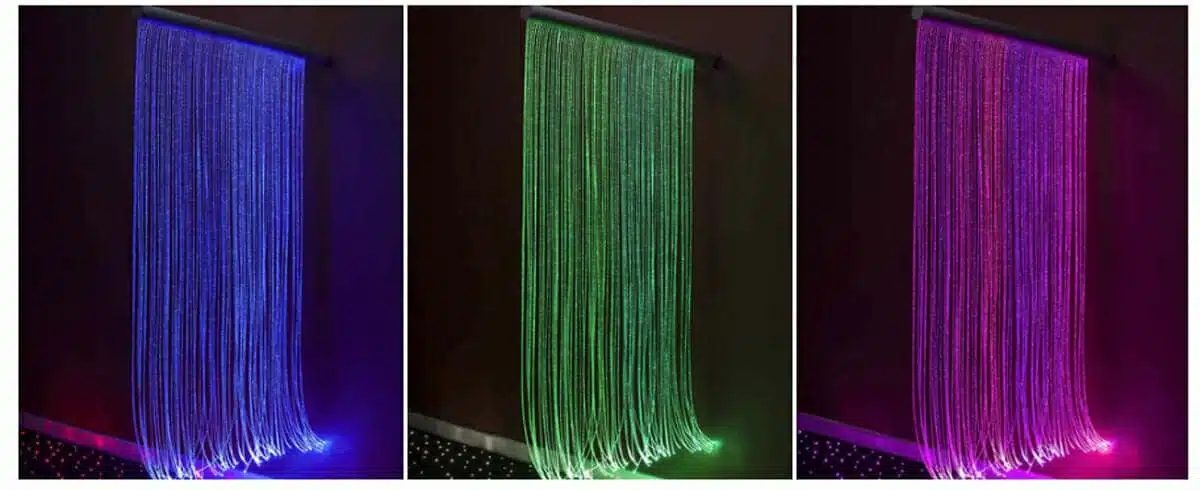

The optical fibers “Side-Glow” are used to create curtains, chandeliers, leaving plenty of space for imagination and creativity in many different realizations.

GLASS FIBRE OPTICS “SIDE GLOW”

The glass fiber optics bunldes “Side-Glow” are composed by max 400 tails having an outer diameter of the sheath (transparent PVC) of 2.2 mm, with a useful diameter of the optical fiber of .3 mm for each single fiber optics tail (Size 1), with a maximum recommended length of 5 meters. Not require the use of terminals but only the common connector for connection to light source.

PMMA FIBER OPTICS“SIDE GLOW”

The pmma fiber optics bunldes “Side-Glow” are composed by max 260 tails having an outer diameter of the sheath (transparent PVC),of 3,0mm, with a useful diameter of the optical fiber of 1,7 mm, with a recommended maximum length of 10 mt. Not require the use of terminals but only the common connector for connection to light source.

Cobb Fibre Ottiche | fibre ottiche side glow colore | fibre-ottiche-side-glow-colore

Technical features

CodeDescriptionOptical diameterOuter diameterBend radius
SIDE-GLOW-V“Side Glow” glass fiber optics1,3mm2,2mm13mm
SIDE-GLOW-S“Side Glow” synthetic fiber optics1,7mm2,7mm21mm
